LenzeKontrolörlerP500-CONTROLLER

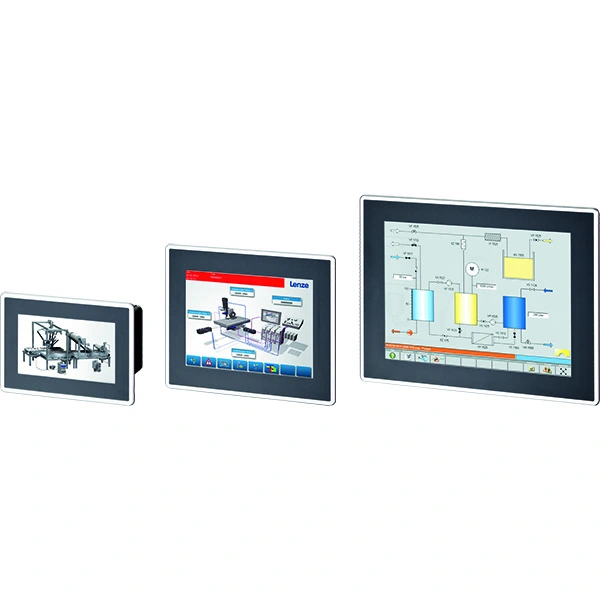

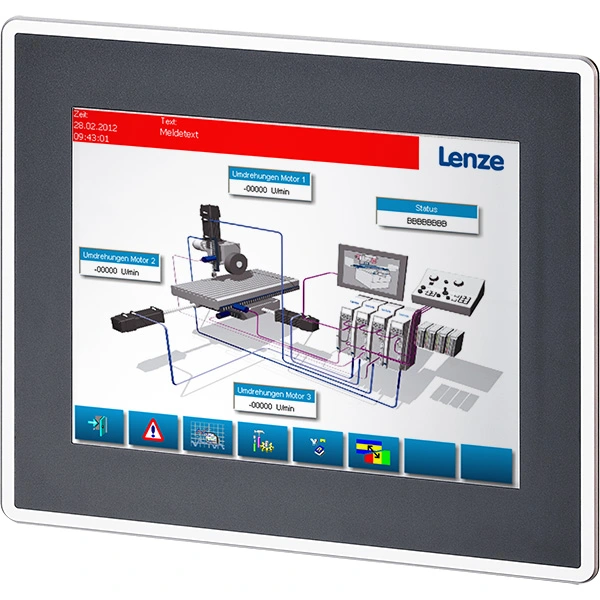

P500 kontrolör
The compact p500 kontrolör combines logic (PLC), motion and visualization in a single device. It is ideal as a control and visualization system within the machine for applications with central motion
Teknik Özellikler
- Operating system
- Windows® CE Runtime software: Logic + Motion VisiWinNET® 1000 power tags
- Display
- 7" (17.8 cm), 800 x 480 pixels 10.4" (26.4 cm), 800 x 600 pixels 15" (38.1 cm), 1024 x 768 pixels Resistive touchscreen
- Haberleşme
- EtherCAT master CANopen PROFIBUS master PROFIBUS slave PROFINET IO-Device Ethernet 10/100 Mbps, 2-port switch RS232, RS422, RS485
The compact p500 kontrolör combines logic (PLC), motion and visualization in a single device. It is ideal as a control and visualization system within the machine for applications with central hareket kontrolü.
Özellikler
Endüstriyel kalite
The compact p500 kontrolör combines logic (PLC), motion and visualization in a single device. It is ideal as a control a
Uygulama Alanları
- Genel endüstriyel makine uygulamaları
Teknik veriler
| Processor | Intel® Atom™ 1.75 GHz |
|---|---|
| Operating system | Windows® CE Runtime software: Logic + Motion VisiWinNET® 1000 power tags |
| Display | 7" (17.8 cm), 800 x 480 pixels 10.4" (26.4 cm), 800 x 600 pixels 15" (38.1 cm), 1024 x 768 pixels Resistive touchscreen |
| Communication | EtherCAT master CANopen PROFIBUS master PROFIBUS slave PROFINET IO-Device Ethernet 10/100 Mbps, 2-port switch RS232, RS422, RS485 |
