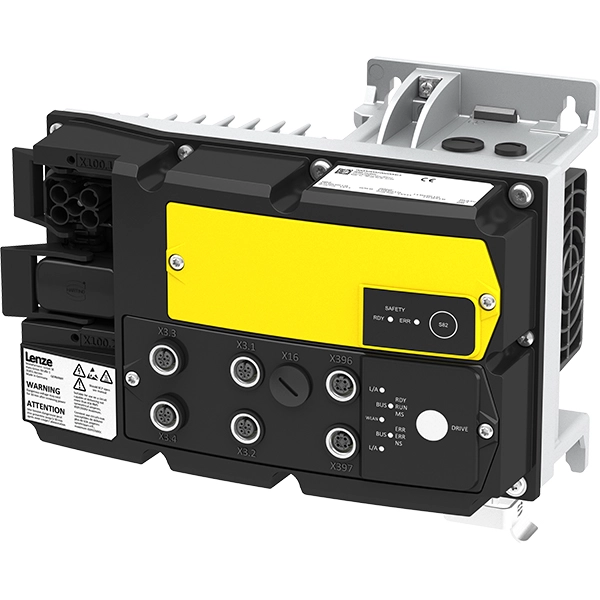

I650 Motec frekans konvertörü
The i650 motec frekans konvertörü for wall mounting and motor mounting in protection class IP66 (UL Type 4X indoor) is the optimal decentralized sürücü solution. The inverter can be extended for univer
Teknik Özellikler
- Bağlantılar
- 3 AC 230 V 3 AC 400 V 3 AC 480 V Application I/O: 4 x IO-Link port or 8 x digital input or 4 x digital input/4 x digital output Holding brake control Motor temperature monitoring USB C
- Haberleşme
- EtherCAT EtherNet/IP IO-Link Modbus TCP PROFINET Safety bus CIP Safety Operation with safety PLC
The i650 motec frekans konvertörü for wall mounting and motor mounting in protection class IP66 (UL Type 4X indoor) is the optimal decentralized sürücü solution. The inverter can be extended for universal use with an extension box with disconnect switch with/without Type E combination motor kontrolör and operating elements.\n\nThe i650 motec frekans konvertörü stands out from the i550 motec due to its extended range of functions: For simple automation tasks, a logic PLC based on CODESYS in accordance with the IEC 61131-3 standard is integrated in the i650 motec. Table positioning is available for the realization of independent axes and machine modules. The Extended Safety option (safety technology with various functions) rounds off the overall package.
Özellikler
Endüstriyel kalite
The i650 motec frekans konvertörü for wall mounting and motor mounting in protection class IP66 (UL Type 4X indoor) is t
Uygulama Alanları
- konveyör sürücü
- traveling sürücü
- winding sürücü
- hoist sürücü
- extruders
- packaging machines
- pompas
- fans
Teknik veriler
| Technical data | 0.37 ... 45 kW |
|---|---|
| Connections | 3 AC 230 V 3 AC 400 V 3 AC 480 V Application I/O: 4 x IO-Link port or 8 x digital input or 4 x digital input/4 x digital output Holding brake control Motor temperature monitoring USB C |
| Communication | EtherCAT EtherNet/IP IO-Link Modbus TCP PROFINET Safety bus CIP Safety Operation with safety PLC |
