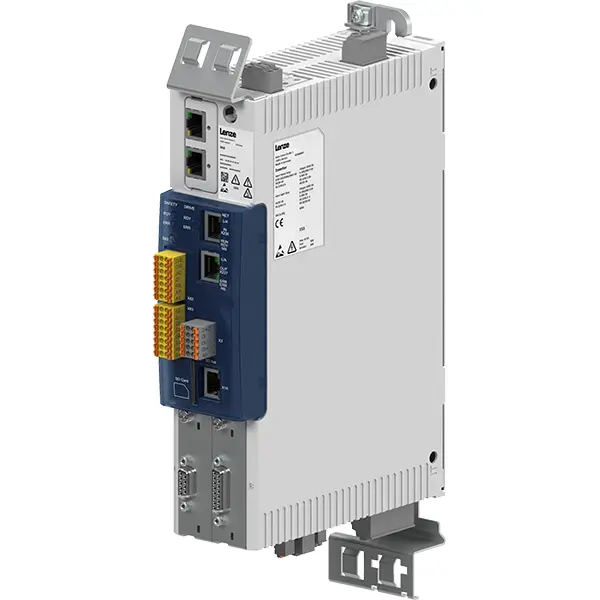

I950 Cabinet servo sürücü
The smart i950 cabinet servo sürücü offers everything needed for precise and dynamic hareket kontrolü in complex multi-axis applications and features a variety of safety options. The focus is on high pow
Teknik Özellikler
- Bağlantılar
- 1 AC 230 V 3 AC 230 V 3 AC 400 V 3 AC 480 V 4x digital input 1x digital output 1x analog input Safe inputs for the connection of safety sensors Safe outputs for safe feedback DC bus Motor temperature monitoring Resolver/multi-encoder input for feedback (motor) Resolver/multi-encoder input for feedback (load) One Cable Technology (OCT) via HIPERFACE DSL® Connection of safety-rated encoder systems
- Extension modules (option):
- Resolver/multi-encoder input for feedback (motor) Resolver/multi-encoder input for feedback (load) Digital-I/O (5x digital input, 5x digital output) Extended-I/O (4x digital input, 2x digital output, 1x analog input, 1x analog output) Digital frequency Connection of safety-rated encoder systems
- Haberleşme
- EtherCAT Ethernet EtherNet/IP PROFINET PROFIBUS CAN/CANopen FSoE safety bus PROFIsafe safety bus on PROFINET Operation with safety PLC

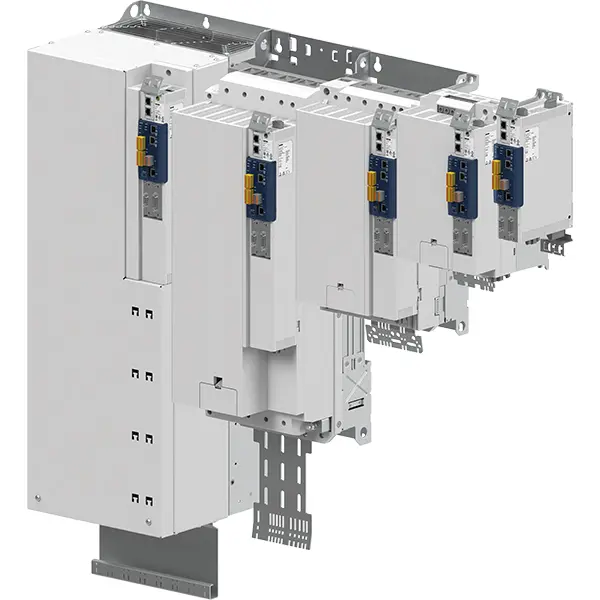

The smart i950 cabinet servo sürücü offers everything needed for precise and dynamic hareket kontrolü in complex multi-axis applications and features a variety of safety options. The focus is on high power density, reduced cabling, simplified commissioning, and a flexible, modular architecture. Operation can be controlled either centrally via a higher-level kontrolör or using the sürücü's own logic. The power range is from 0.37 to 250 kW. In addition, the use of One Cable Technology (OCT) reduces the amount of wiring required and prevents interference.
The i950 cabinet offers flexible modularity and can be customized for feedback and fieldbus link. This reduces the number of variants and lowers system costs.
Thanks to modular Haberleşme interfaces such as CAN, PROFIBUS, PROFINET, EtherCAT, and EtherNet/IP, as well as targeted support for established sürücü profiles such as CiA 402 (protocol-dependent), the i950 cabinetcanbe flexibly and seamlessly integrated into a wide variety of automation environments.
In addition to its flexible hardware configurations, the i950 cabinet comes standard with integrated technology features as part of our FAST Application Software. Based on pre-configured technology applications within our FAST Application Software Toolbox, it can be easily integrated into modular machine solutions thanks to its built-in PLC—parameterization instead of programming. If required, the pre-designed software modules can be easily customized and extended.
The requirements of the Ecodesign Directive, standard EN IEC 61800-9-2, are met.
Özellikler
Yüksek güç yoğunluğu
0,37–250 kW aralığında kompakt kabin sürücü.
One Cable Technology
Azaltılmış kablolama ve girişim önleme.
Entegre güvenlik
SIL3/PLe Cat.4'e kadar güvenlik fonksiyonları.
Uygulama Alanları
- Çok eksenli makine otomasyonu
- Ambalaj ve işleme hatları
- Sarma ve bobinaj uygulamaları
- Yüksek dinamikli servo sistemler
Teknik veriler
| Technical data | 0.37 ... 110 kW |
|---|---|
| Connections | 1 AC 230 V 3 AC 230 V 3 AC 400 V 3 AC 480 V 4x digital input 1x digital output 1x analog input Safe inputs for the connection of safety sensors Safe outputs for safe feedback DC bus Motor temperature monitoring Resolver/multi-encoder input for feedback (motor) Resolver/multi-encoder input for feedback (load) One Cable Technology (OCT) via HIPERFACE DSL® Connection of safety-rated encoder systems |
| Extension modules (option): | Resolver/multi-encoder input for feedback (motor) Resolver/multi-encoder input for feedback (load) Digital-I/O (5x digital input, 5x digital output) Extended-I/O (4x digital input, 2x digital output, 1x analog input, 1x analog output) Digital frequency Connection of safety-rated encoder systems |
| Communication | EtherCAT Ethernet EtherNet/IP PROFINET PROFIBUS CAN/CANopen FSoE safety bus PROFIsafe safety bus on PROFINET Operation with safety PLC |
